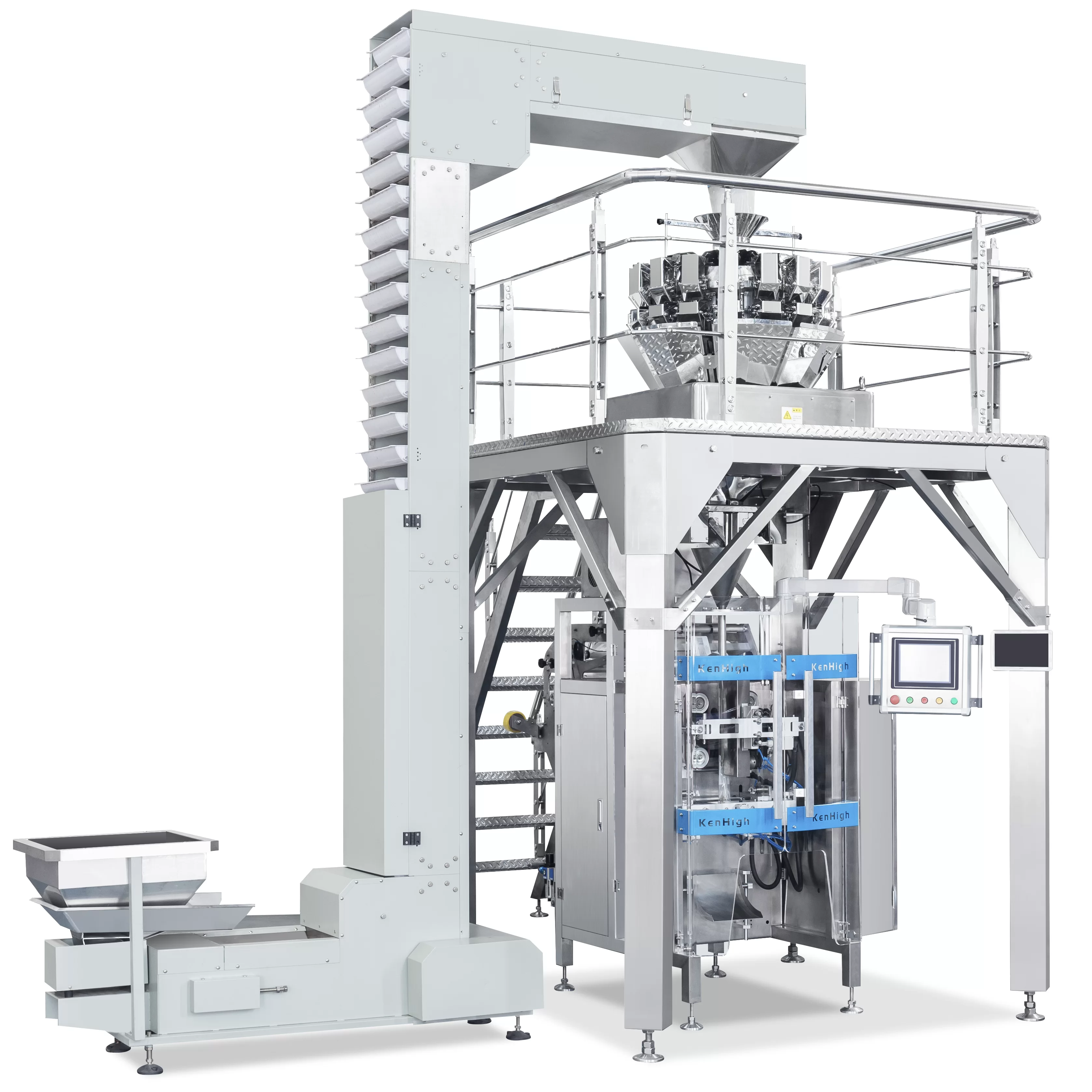

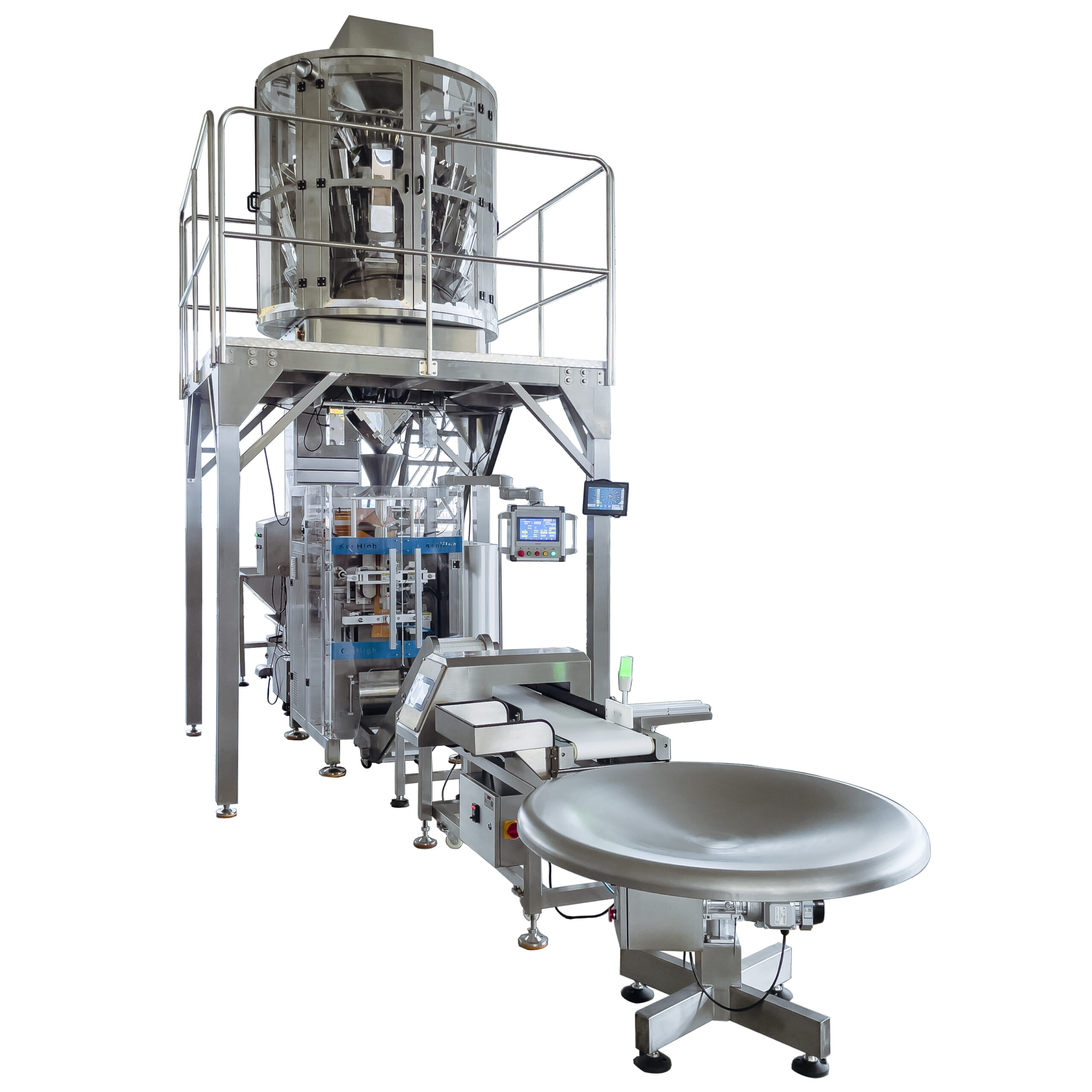

Flavored Juice Ice Ball High Speed VFFS Packaging Machine
Continuous Motion High Speed Vertical Form Fill Seal Machine
Weight Range: 10-1000 gram
Bag Size: Width 60-250mm, Length 60-350mm
Speed: 70-150 bags/min（depend on the raw material features and bag size）
Application: Suitable for packing granular products, such as chips, salty beans, nuts, snacks, flavored ice ball etc.
Kindly Reminder
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest you the optimum solution for reference.
1.Your product
2.Bag dimension
3. Weight per bag
4. Bag shape
5. Film material
Description
Sunflower Seeds High Speed VFFS Packing Machine
Continuous motion VFFS packing machines are integral to many industries due to their speed, efficiency, and versatility, providing reliable and high-quality packaging solutions.
- High-Speed Operation:Continuous motion VFFS machines are designed for high-speed packaging, capable of producing a large number of bags per minute. This makes them suitable for industries requiring high throughput.
- Consistent and Smooth Operation:The continuous motion mechanism ensures smooth and consistent operation, minimizing the risk of product spillage and packaging defects.
- Precision Sealing:These machines offer precise sealing technology, which ensures that each bag is sealed perfectly to prevent leakage and maintain product freshness.
- Advanced Control Systems:Equipped with sophisticated control systems, featuring touch-screen interfaces for easy operation and monitoring. These systems allow for precise adjustments and real-time monitoring of machine performance.
KenHigh offer customized vertical form fill seal packing machine designed and manufactured according to your specific demands. We have normal speed VFFS machine and continuous motion VFFS packing machine with 80-150 bags/min speed to meet high production capacity packaging solution. This continuous motion high speed VFFS packing machine is widely used in snacks, seeds, nuts, salty beans, frozen food, dried fruits and candy packaging.
KenHigh continuous motion Vertical Form Fill Seal (VFFS) packaging machine offers several key features and advantages that make it ideal for high-speed packaging applications.
- Full intelligent PLC control.
- Servo motor drive pulling belts and horizontal seal.
- Easy to change forming tube.
- All parts in contact with product are made of food-grade stainless steel.
- Smart control system with alarm detection and data logging.
- Simple, clean and robust design
- Convenient back seal alignment
- Self aligning and vacuum pulling belts
- Easy replacement of wear & tear parts
- High speed up to 150 bags/min
Technical Details
Technical Details
- Type：HS-420/520
- Bag length:80-350mm Bag width:60-250mm
- Max width of roll film:520mm
- Packing material:OPP/CPP、OPP/PE、PET/PE
- Packing speed-Max:150bags/min-Max
- Measuring range:10grams-1000grams
- Air consumption:0.65MPa
- Gas consumption:0.3m3/min
- Power Voltage:220VAC 50Hz
- Dimension:(L)1080mm×(W)1300mm×(H)1400mm
