Liquid Stick Packaging Machine With Secondary Cardboard Boxing System
The cartoner complete line, count and group stick pack into boxes to fit the requirements of modern distribution of food, pharmaceutical, dairy, cosmetics and chemical products.
Used in various product sectors, this stick pack cartoning system packs cartons containing a certain number of stick packs already counted and inserted, arranged both in an orderly and disorderly manner.
The different dosing systems allow you to package any type of product: granular and powder, liquid and pasty.
Description

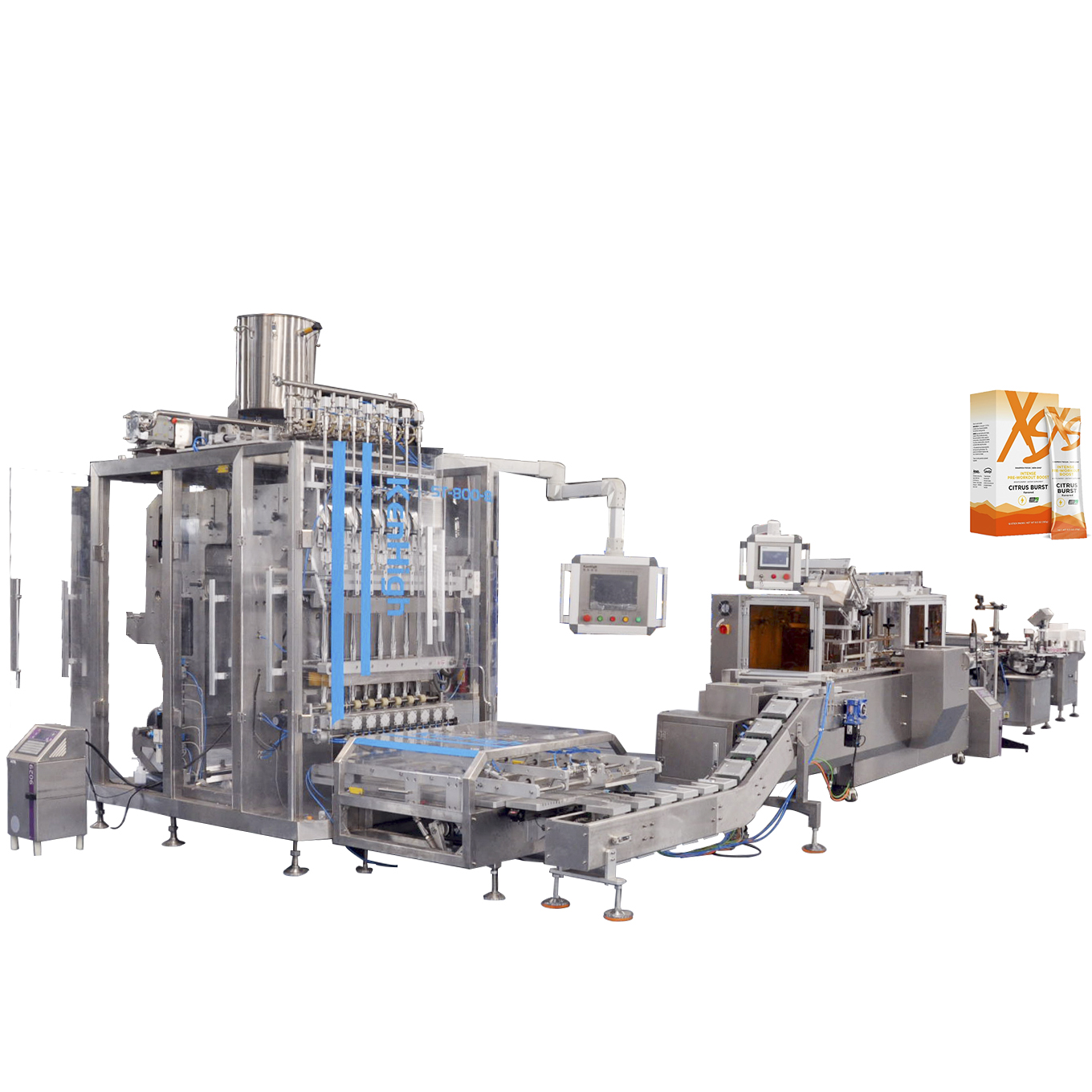

This 8-lane liquid stick packaging line is for tomato sauce stick packaging with carton system.
The multilane stick packing machine dosing, form, fill and seal the liquid stick with 30-50 bags/min/lane speed. The finished stick be conveyed to the carton system.
Cartoning and collating systems can be integrated to enable seamless packaging, counting, stacking, carton forming/erecting, and carton closing.
An in-line check weighing option enables real-time quality control data collection. The entire line requires only one operator, reducing labor costs.
Features
Features
- Flexibility in counting for each box: with a quick format change in 30 minutes, KenHigh allows you to insert any amount of stick in the box.
- Produce cartons at maximum speed according to the counts: based on the number of sticks per carton, the cartoner produces them with alternating or continuous motion.
- Laser scoring on film and OCR: Laser for the easy opening of the stick-pack sachet and for the marking of variable data, verified with optical character recognition
TECHNICAL PARAMETER
TECHNICAL PARAMETER
- Available pouch size: Width: 16-100mm Length: 30-180mm
- Available lanes: 4-26 lanes
- Machine speed: 30-60 bags/lane/min (depend on the bag size and weight)
- The total weight: 1230KG-2200KG
- Film materials: aluminum-plastic composite film, aluminum-plated film, paper plastic composite film, plastic composite film with hot melt type inner layer

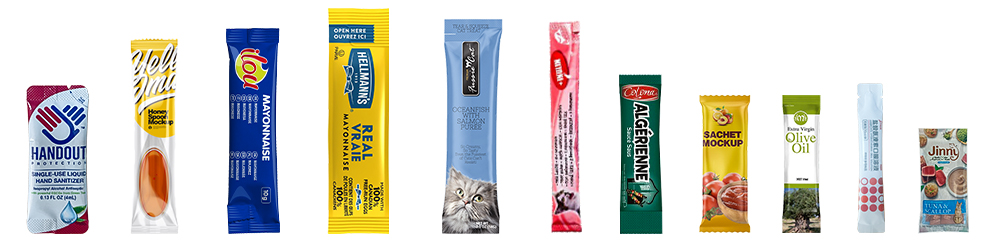

BAG STYLES
BAG STYLES
