Stick & Sachet Pack with Vertical Form Fill Seal Machine

The VFFS complete line, groups stick pack and flat sachets into stand-up pouch or pillow bags to fulfill the requirements of modern distribution.

Kindly reminder
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Weight per bag
3. Your product
4. Bag shape
5. Film material
Description

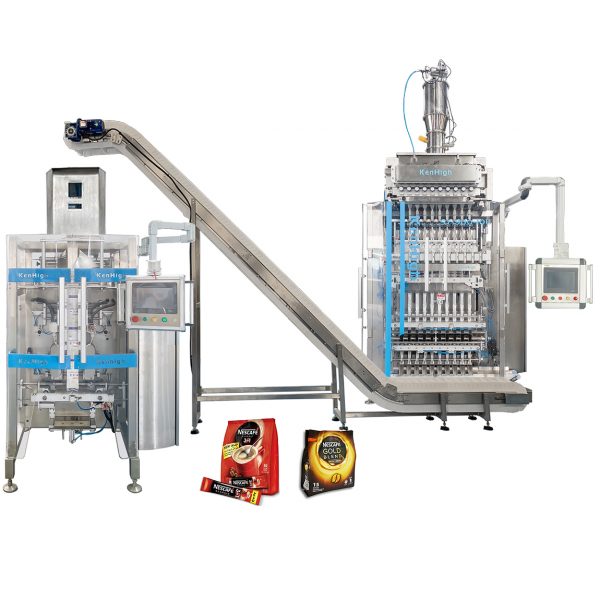

The Vertical Form Fill & Seal Machine is a complete line with one multilane packaging machine of 12 lanes each connected by a inclined belt conveyor to a VFFS machine.

  • All parts that come in contact with the product are made with stainless steel or materials approved for use in the food, chemical or pharmaceutical industry
  • Minimal overall clearance: a single operator can monitor the entire line, which is easy to use
  • Variable data marking: ink-jet, laser or  thermal transfer with embossing type characters
  • Compact and integrated design with stickpack/sachet machines, counting conveyer allows different quantity stick bags packed into one bag.
  • Outer bag feeding types include horizontal, vertical and disorderly feeding.
  • Automatic detection of irregularities in the sealing temperature or in the pneumatic pressure of the network, guaranteeing a correct seal at all times
TECHNICAL DETAILS

TECHNICAL DETAILS

No. of lines: from 4 to 13

Max fill width: 1000 mm

Bag length: variable from 50mm to 180mm

Bag width: fixed, because it is shaped

Production speed: up to 50 cycles/min/line

Max volume that can be packaged: 300 cm3

Drive unit: Brushless motors

KenHigh offers the chance to design, together with its clients, a full system to package stick packs in tailor-made cases.

The lines can be fitted with all the devices require both by the food and the pharmaceutical industry.
