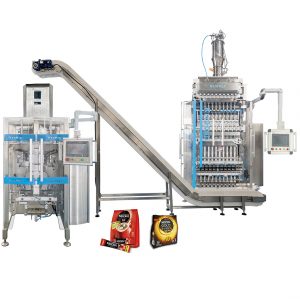

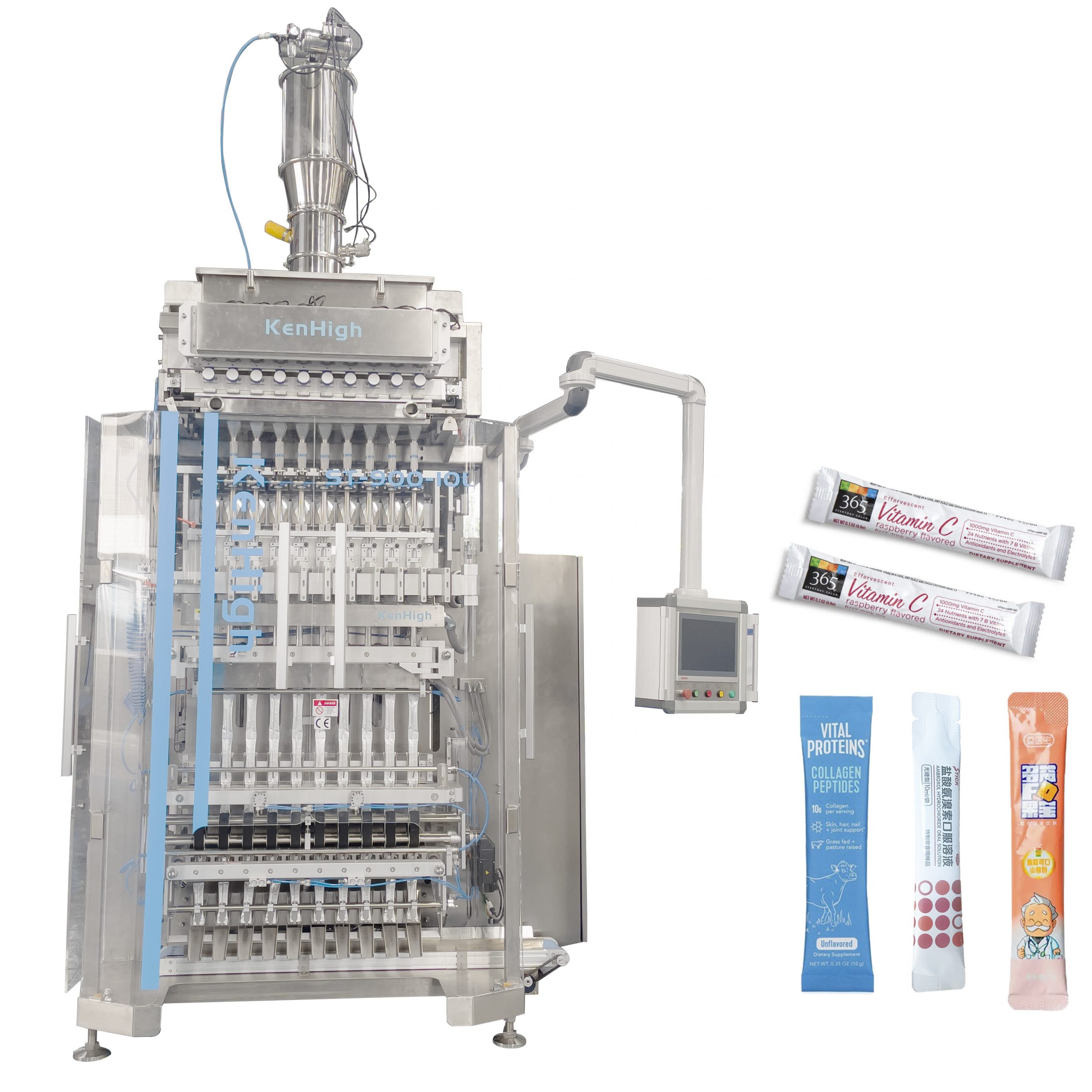

Stick Pack With Flexible Cartoning System

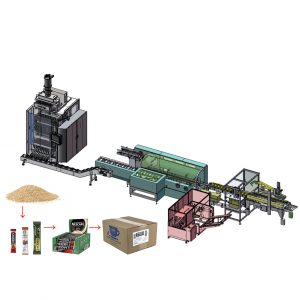

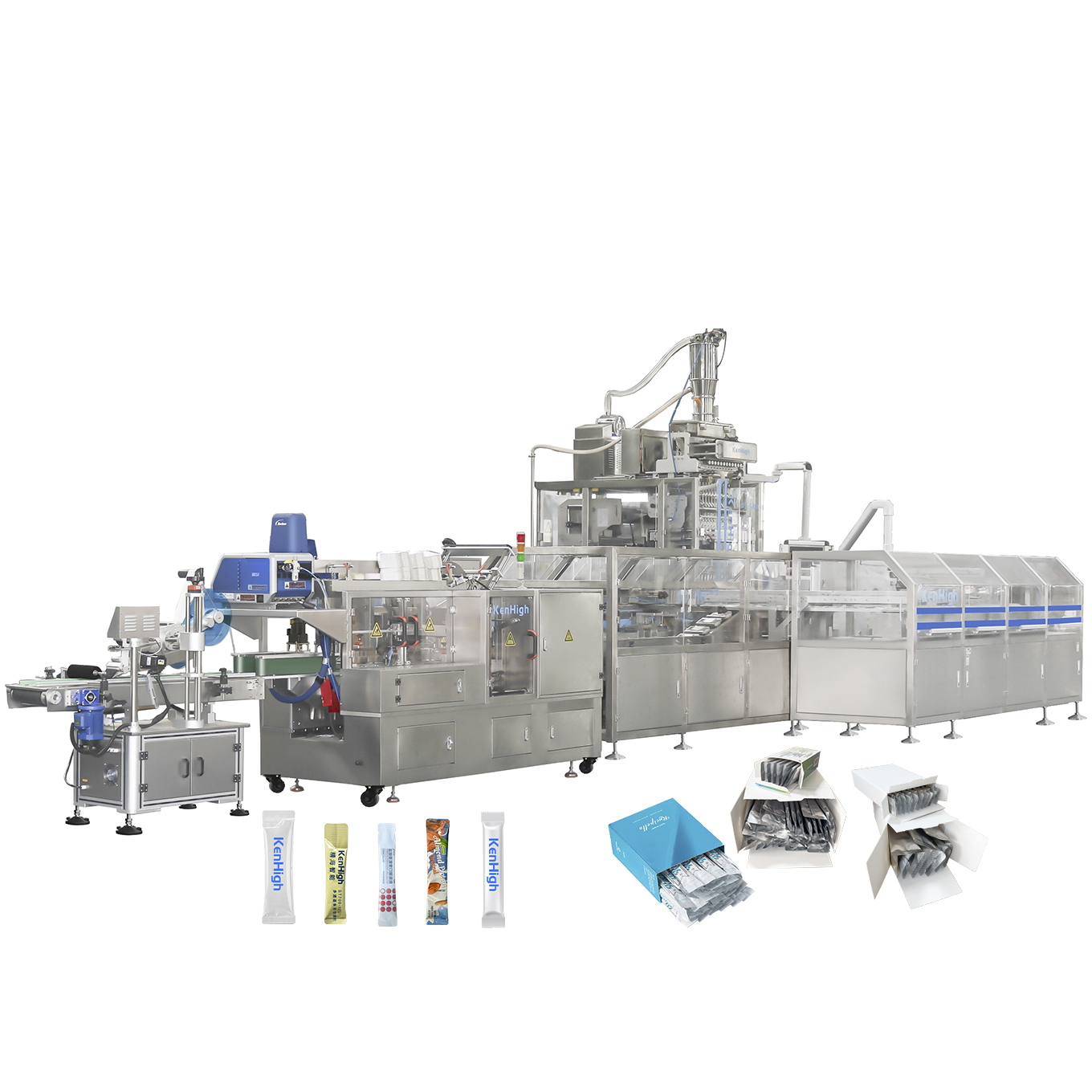

This full stickpack packaging line consisting of a stick pack packaging machine, a counting and grouping system and a cartoning machine.
Used in various product sectors, it packs cases containing a set number of stick packs that have already been counted and inserted, both loose ones and those arranged in an orderly manner.
The cartoner complete line, count and group stick pack into boxes to fit the requirements of modern distribution of food, pharmaceutical, dairy, cosmetics and chemical products.
Description
Cartoning and collating systems can be integrated to enable seamless packaging, counting, stacking, carton forming/erecting, and carton closing.
An in-line checkweighing option enables real-time quality control data collection.
The entire line requires only one operator, reducing labor costs.
KenHigh offers the possibility of jointly designing, in collaboration with clients, complete made-to-measure systems for stick pack packaging.
Technical Details
Technical Details
No. of lines: from 4 to 13 lanes
Max fill width: 1000 mm
Bag length: variable from 50mm to 180mm
Bag width: fixed, because it is shaped
Production speed: up to 50 cycles/min/line
Max volume that can be packaged: 300 cm3
Drive unit: Brushless motors
KenHigh offers the chance to design, together with its clients, a full system to package stick packs in tailor-made cases.
The lines can be fitted with all the devices require both by the food and the pharmaceutical industry.

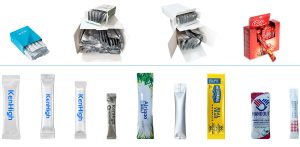

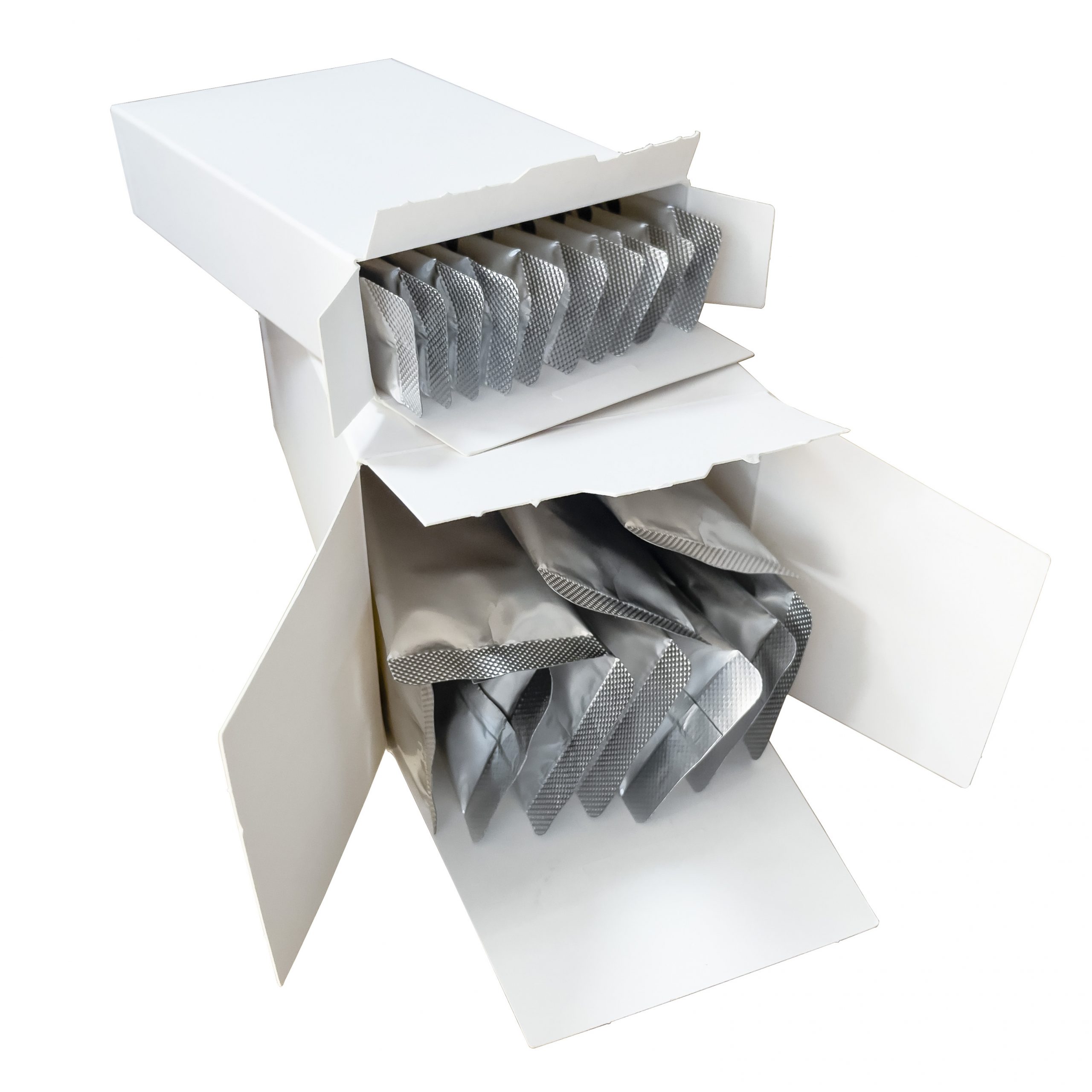

Product Samples
